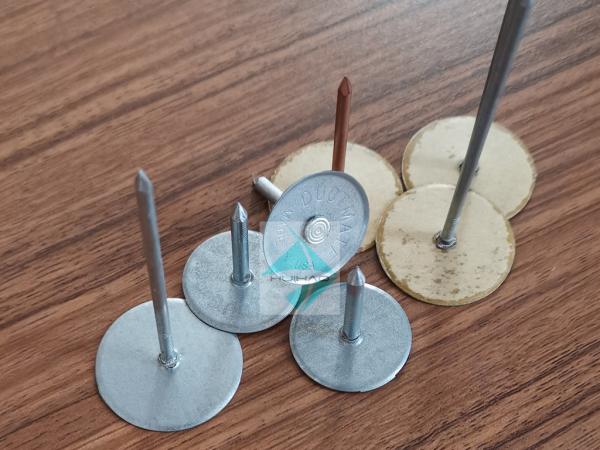

12Gauge 38mm Ductwork Metal Cupped Head Weld Pins , Rock Wool Insulation Weld Nails For HAVC System
>>> Introduction To The Metal Head Pins , Rock Wool Insulation Nails
The standard material for cupped head pins is low carbon steel, for special order,the material is 18-8 stainless steel. we call Quilting pins.
For US, Canada, the standard washer diameter is 1.187"(30mm), the pin diameter is 12GA(2.7mm), the washer can with or without kraft paper. the length from 3/8" to 4-7/8" .
For EU countries, the washer diameter is 30mm, 38mm, The pin diameter is 12GA(2.7mm) and 14GA(2.0mm).
the washer can with or without kraft paper, the pin can be with or without plastic sleeve. the length from 9.5mm to 140mm. we also accept the special order for other lengths.
| MATERIAL | PIN | WASHER |
| LOW CARBON STEEL | LOW CARBON STEEL |
| C - 0.23% max | P - 0.04% max. | C - 0.23% max | P - 0.04% max. |
| Mn - 0.90% max. | S - 0.05% max | Mn - 0.90% max. | S - 0.05% max |
| MECHANICAL PROPERTIES | Values available upon request | Values available upon request |
| PLATING | Standard Pin is Galvanized | Standard Washer is Galvanized |
| Copper Plated is available |
| BEVEL | Washer edge is beveled to prevent cutting of insulation material |
| STAINLESS STEEL | Not standard, but available by special order |
| PAPER INSULATING WASHERS | Available, upon request, for welding through foil faced insulation |
>>>Specification Of Metal Head Pins , Rock Wool Insulation Nails
Mini Metal Cup Head Welding Pins
| Material | Length | Pin Diameter | Head Diameter | | Galvanized Steel | 3/8" | 12Ga (2.7mm) | 1-3/16" (30mm) | | Galvanized Steel | 1/2" | 12Ga (2.7mm) | 1-3/16" (30mm) | | Galvanized Steel | 3/4" | 12Ga (2.7mm) | 1-3/16" (30mm) | | Galvanized Steel | 7/8" | 12Ga (2.7mm) | 1-3/16" (30mm) | | Galvanized Steel | 1" | 12Ga (2.7mm) | 1-3/16" (30mm) | | Galvanized Steel | 1-1/8" | 12Ga (2.7mm) | 1-3/16" (30mm) | | Galvanized Steel | 1-1/4" | 12Ga (2.7mm) | 1-3/16" (30mm) | | Galvanized Steel | 1-1/2" | 12Ga (2.7mm) | 1-3/16" (30mm) | | Galvanized Steel | 1-5/8" | 12Ga (2.7mm) | 1-3/16" (30mm) | | Galvanized Steel | 1-7/8" | 12Ga (2.7mm) | 1-3/16" (30mm) | | Galvanized Steel | 2" | 12Ga (2.7mm) | 1-3/16" (30mm) | | Galvanized Steel | 2-1/8" | 12Ga (2.7mm) | 1-3/16" (30mm) | | Galvanized Steel | 2-1/4" | 12Ga (2.7mm) | 1-3/16" (30mm) | | Galvanized Steel | 2-1/2" | 12Ga (2.7mm) | 1-3/16" (30mm) | | Galvanized Steel | 3" | 12Ga (2.7mm) | 1-3/16" (30mm) | | Galvanized Steel | 3-1/2" | 12Ga (2.7mm) | 1-3/16" (30mm) | | Galvanized Steel | 4" | 12Ga (2.7mm) | 1-3/16" (30mm) | | Galvanized Steel | 4-1/2" | 12Ga (2.7mm) | 1-3/16" (30mm) | | Galvanized Steel | 5" | 12Ga (2.7mm) | 1-3/16" (30mm) | | Galvanized Steel | 5-1/2" | 12Ga (2.7mm) | 1-3/16" (30mm) | | Galvanized Steel | 6" | 12Ga (2.7mm) | 1-3/16" (30mm) | | Galvanized Steel | 8" | 12Ga (2.7mm) | 1-3/16" (30mm) | |
Application
1: Position insulation
2: Press cup head pin through insulation
3: Weld in place to complete installation
Cupped head pins
1. Cupped head insulation pins is a insulation fastener which is used to fasten the insulation materials to sheet metal
of air duct, other heating, ventilating or air conditioning.
2. A fabricated part made up of a weld pin and a staked on retaining washer,it is usually applied with a capacitor
discharge stud welder.
3. The method of application is to place the insulation onto a metal surface, push the Cup Head weld pin through the insulation, and weld affix (mount) the entire fabrication in one step. Now it is widely accepted as labor saving fasteners
in the thermal and acoustical insulation markets for use in industrial and commercial applications.
