Spraying Color Flexible Mesh Type Privacy Ceiling Panel With Replaceable Frame

Brand Name : Huihao

Model Number : Privacy Ceiling Panel With Replaceable Frame

Place of Origin : China

MOQ : Negotiable

Payment Terms : L/C,T/T,Western Union.PAYPAL

Supply Ability : 1000PCS PER 30 DAYS

Delivery Time : 5-8 WORK DAYS

Packaging Details : Stardard exported wooden boxes or As your request.

Name : Privacy Ceiling Panel With Replaceable Frame

frame Type : Replaceable Frame

Dimensions : 635 × 1253mm, 720 × 1220mm

mesh type : flexible cable mesh

frame size : 40mmx40mm

Material : Stainless Steel Mesh

surface treatment : spraying gold color

pattern design : support

Certification : ISO9001-2008

Contact Now

Spraying Color Flexible Mesh Type Privacy Ceiling Panel With Replaceable Frame
Product Specifications
Attribute Value
Name Privacy Ceiling Panel With Replaceable Frame
Frame Type Replaceable Frame
Dimensions 635 × 1253mm, 720 × 1220mm
Mesh Type Flexible Cable Mesh
Frame Size 40mm×40mm
Material Stainless Steel Mesh
Surface Treatment Spraying Gold Color
Pattern Design Custom Support
Detailed Features
Frame Type Frame Size Mesh Type Material
Replaceable Frame 40mm×40mm Flexible Cable Rod Mesh Stainless Steel
Max Width Max Length Surface Treatment Color
3000mm 8000mm Spraying Coated Gold Color
Flexible Mesh Pattern Specifications
  • Pattern design support according to application requirements
  • Frame design support for various installation methods
  • Multiple surface treatment options including PVDF, PVD, and Spraying
  • Complete installation accessories including screws, wall anchors, tracks, bolts, etc.
  • Material options: stainless steel, copper, bronze, brass, aluminum, aluminum alloy
  • Weave type options: plain weave, twill weave, dutch weave, and custom woven methods
  • ISO9001-2008 Quality Certification Management System

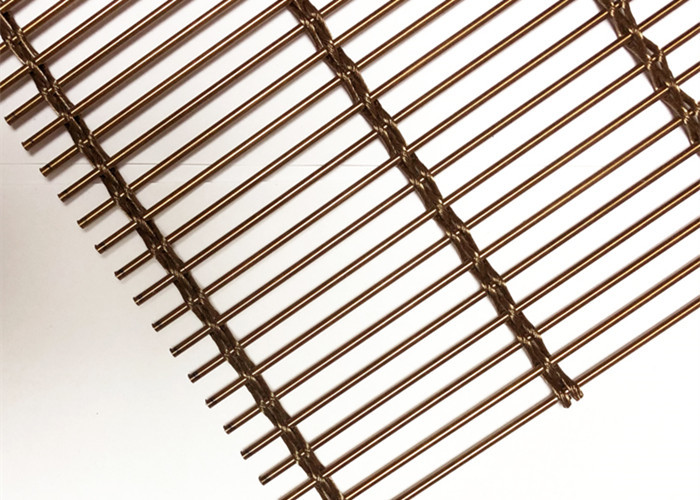

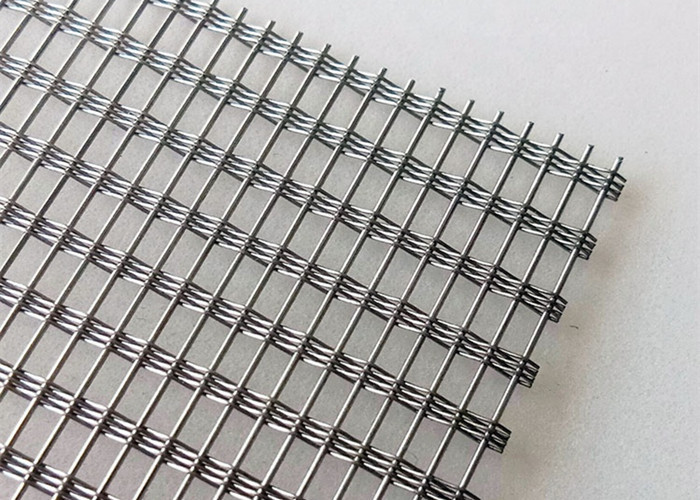

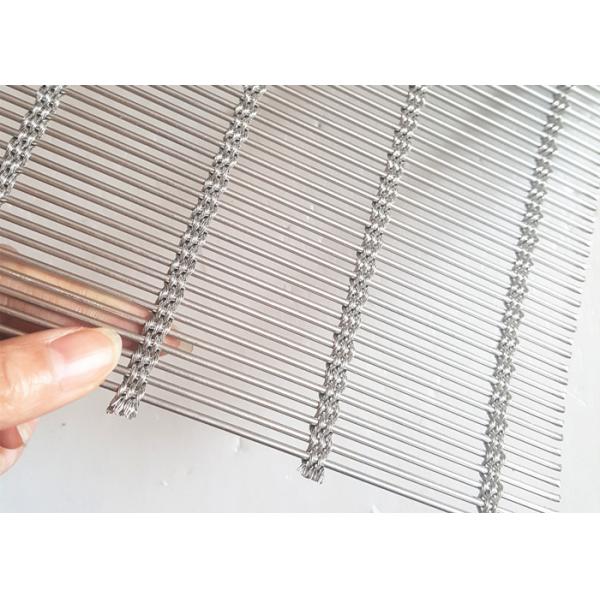

Product Images
Spraying Color Flexible Mesh Type Privacy Ceiling Panel With Replaceable Frame
Flexible Cable Rod Mesh
Spraying Color Flexible Mesh Type Privacy Ceiling Panel With Replaceable Frame
Flexible Cable Rod Mesh
Spraying Color Flexible Mesh Type Privacy Ceiling Panel With Replaceable Frame
Flexible Cable Rod Mesh
Spraying Color Flexible Mesh Type Privacy Ceiling Panel With Replaceable Frame
Flexible Cable Rod Mesh
Spraying Color Flexible Mesh Type Privacy Ceiling Panel With Replaceable Frame
Flexible Cable Rod Mesh
Spraying Color Flexible Mesh Type Privacy Ceiling Panel With Replaceable Frame
Flexible Cable Rod Mesh
Standard Stainless Steel Cable Rod Mesh Specifications
Design Open Area Cable Wire Dia. Cable Pitch Rod Dia. Rod Pitch Thickness Weight
HHZ-Q1 40% 1×1.8 mm 4 mm 1.5 mm 5.5 mm 5.1 mm 7.74kg/m²
HHZ-Q2 43% 1×2.5 mm 6 mm 2 mm 8 mm 5.5 mm 7.87kg/m²
HHZ-Q3 62% 2×2.75 mm 40 mm 4 mm 14.5 mm 9.5 mm 9.41kg/m²
HHZ-Q4 37.20% 3×0.5 mm 3.5 mm 0.5 mm 1.4 mm 1.3 mm 2.4kg/m²
HHZ-Q5 71% 3×1.6 mm 80 mm 2.5 mm 10 mm 5.7 mm 4.58kg/m²
HHZ-Q6 65% 3×2 mm 80 mm 3 mm 10 mm 7 mm 6.67kg/m²
HHZ-Q7 65.90% 3×2.75 mm 110 mm 4 mm 14.5 mm 10 mm 8.5kg/m²
HHZ-Q8 67% 3×3 mm 110 mm 4 mm 14.2 mm 10 mm 8.6kg/m²
HHZ-Q9 44.30% 4×0.75 mm 26.4 mm 1.5 mm 3 mm 3 mm 5.2kg/m²
HHZ-Q10 62% 4×1 mm 36 mm 2 mm 6.6 mm 4 mm 4.55kg/m²
HHZ-Q11 40% 4×2 mm 50 mm 3 mm 6 mm 7mm 11.2kg/m²
HHZ-Q12 42% 4×2 mm 50 mm 3 mm 6 mm 7 mm 11.8kg/m²
Applications
Spraying Color Flexible Mesh Type Privacy Ceiling Panel With Replaceable Frame
  • Space divider
  • Wall decoration
  • Ceiling decoration
  • Window curtain
  • Handrail balustrade
  • Elevator cab mesh
Spraying Color Flexible Mesh Type Privacy Ceiling Panel With Replaceable Frame
  • Facade cladding
  • Glass laminated wire
  • Sunshade screen
  • Security door
  • Elevator cabins screen
  • Floor covering fabrics
Spraying Color Flexible Mesh Type Privacy Ceiling Panel With Replaceable Frame
  • Wire mesh facades
  • Shade screens
  • Architecture ceilings
  • Metal draperies for walls
  • Partition and isolation screens
  • Staircases isolation screen
